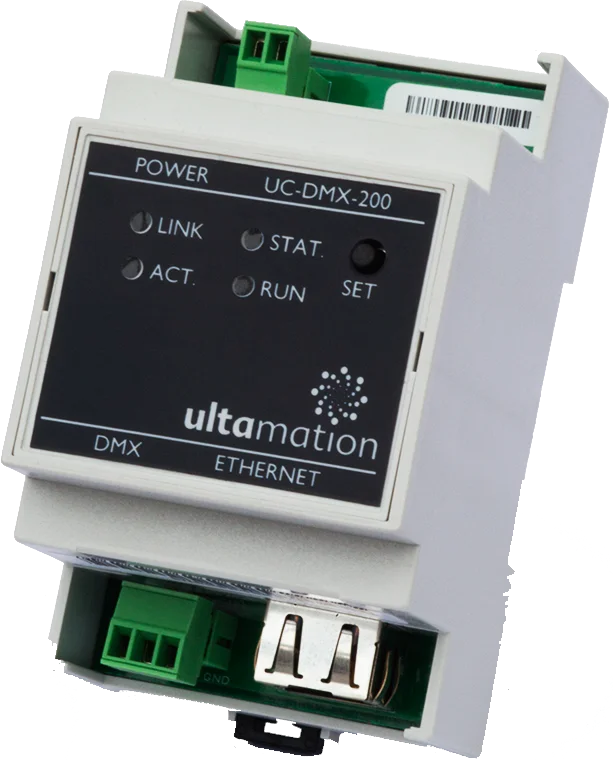

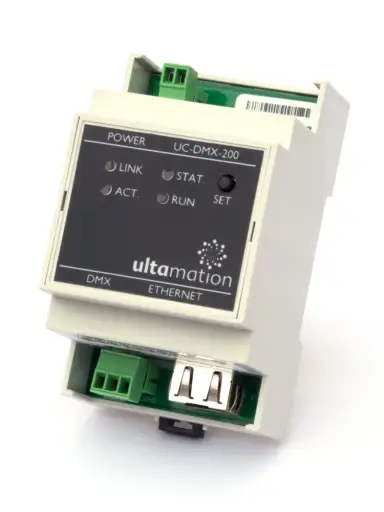

UC-DMX-210 Ethernet to DMX Controller

Name: UC-DMX-210 Ethernet to DMX Controller
SKU: UC-DMX-210
Price: 750.00 GBP
Availability: InStock

Free Shipping

Fast Delivery

Easy Returns

52 items in stock

Experience powerful and flexible control of your lighting with the Ultamation UC-DMX-210. Designed for professional integration, the UC-DMX-210 bridges your Ethernet-based control system with any DMX-controlled lighting or effects device, delivering seamless, reliable communication across an entire 512-channel DMX universe.

Account required to purchase. Log in or create an account to view pricing and add items to your cart.

Features

Lighting Engine

Dual independent RGB pattern generators (up to 16 colour steps each)
Pattern generators can be combined using mathematical and logical operators for complex effects
“Fade” mode for smooth transitions between programmed colour states
Non-volatile memory for up to 255 stored patterns and startup configurations

Connectivity & Software

TCP and UDP Ethernet communication, DHCP enabled by default
Compatible with Ultamation’s Universal Configuration Tool for setup and commissioning
Crestron integration modules and a dedicated Crestron Home driver both available

Hardware & Build

Compact 3-module DIN rail mount enclosure
Flexible power input: 9–24V DC or AC, internally rectified
Microchip PIC-based processor, 41 MHz operation
Made in Great Britain for professional-grade reliability

Supported Models

While we have tested the controller with a large range of DMX drivers, we cannot verify every device. Our DMX controller sits squarely in the middle of the DMX timing specifications.

Dimmable – single DMX channel fixture
Tuneable – two channels (Warm + Cool White), blends any colour temperature between the two
RGB – three channels (Red, Green, Blue) — common for colour-changing tape
RGBW – four channels (Red, Green, Blue, White) for more accurate unsaturated tones
RGB Tuneable – five channels (RGB + Warm/Cool White) — combines RGB and Tuneable in one fixture
WAC AiSPiRE Atmosphere – two channels (Intensity + Calibrated Colour Temperature)
WAC AiSPiRE Aurora – four channels (Intensity, CCT, Saturation, Hue)
WAC AiSPiRE Linear Tuneable – four channels (Cool White, Mid White, Warm White, Intensity) — for tuneable white linear tape
WAC AiSPiRE Linear RGB Tuneable – seven channels (RGB, Warm/Cool White, RGB Intensity, CCT Intensity) — for colour and tuneable white linear tape
WAC Aether – four channels (Intensity, CCT, Saturation, Hue) — tuneable white with saturation/hue
WAC Color Scaping – five channels (Intensity, CCT, Red, Green, Blue)
Custom – configurable number of channels, raw DMX values set directly, with user-defined channel names
Colorbeam RGB (Dimmer and Strobe) – five channels (RGB + Intensity + Strobe); note the strobe feature isn’t yet supported in this driver

PLEASE NOTE: A separate power supply is required. Please refer to the datasheet for specifications.

Compatibility

Compatible with Crestron Home.

Firmware Download will be available if you log in using the account used to purchase a DMX controller.

Shipping

Please note: This product is a physical product will be shipped as per your instructions. Orders placed before 2pm will be shipped that day, any orders placed after 2pm will be shipped the following working day.

We ship internationally through UPS, please select standard shipping (3-5 working days) or express shipping (1-2 working days) on checkout. Please note shipping times are estimated and cannot be guaranteed.

USA/Canada/ India Customers PLEASE NOTE: UPS are now requesting your TAX ID number in order to complete the shipping custom forms. This should be nine numbers. Please supply this when placing your order to prevent delays.

Note: There may be additional duty or import charges applied to your purchase, as the receiver you need to cover these charges. UPS will contact you directly if they apply. Where possible we will try to inform you if these apply in your tracking email.

Licencing

This product does NOT require a separate licence. Upon receiving the DMX hardware download the associated driver from Crestron home under Platform → Ultamation → UC-DMX Controller.

Downloads

UC-DMX-210 Datasheet

UC-DMX-210 Controller Quick Start Guide

UC-DMX-2xx User Guide

UC-DMX-2xx Configuration Tool v.1.10

Crestron Integration Modules

UC-DMX Crestron Integration Module Programming Guide v1.3

Pattern Generator Visual Examples

Ultamation Protocol Specification

DMX Controller Profile

UC-DMX Firmware Release Notes

UC-DMX Production Firmwares 2025

Hardware Warranty

Frequently Asked Questions

Some of the more common questions are answered here

The configuration tool is showing no connection or an intermittent green light. How do I fix this?

The UC-DMX-210 only supports two simultaneous connections. Check the LED on the front of the device, it will flash to indicate the number of active connections. If it flashes more than once, you have too many connections open. To resolve this, close any other connections to the DMX controller.

How many lights can I have connected to one controller?

You can normally have up to 32 connected, however you can add more via a repeater.

I would like to buy multiple DMX controllers but I need more than are in stock on the shop page?

For more information contact us at [email protected]

What is the power requirement?

The UC-DMX devices draw around 30mA (or 0.7W) @ 24VDC.

Is a power supply included?

No. The UC-DMX products are designed to be mounted in a DIN enclosure and it is assumed there will already be suitable DC power available. The device can be powered from 9VDC-24VDC, so - for example - a Cresnet power bus is ideal for this purpose.

How many channels can the DMX support?

Question How many channels can the UC-DMX-210 support? Answer The UC-DMX-210 supports all 512 channels.
